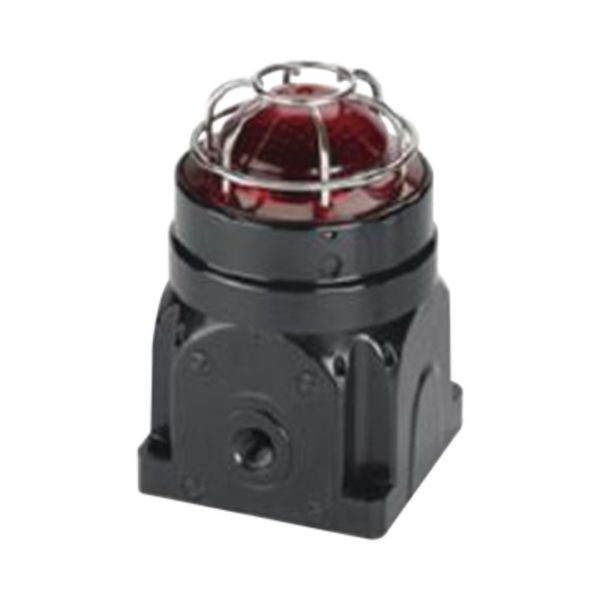

Luz LED de la serie global, para ubicaciónes peligrosas, UL y cUL CID2, 120-240 Vca, montaje en superficie Ex d, rojo

Código SAT: 39111706




Federal Signal’s patented Global Series® LED Beacons feature a long-life LED the ability to select one of eight (8) flash patterns (user-configurable) and offers two lens options (low or high-profile). The device is rated to the latest protection concept, “Ex op is” (inherently safe optical radiation). The housing is made from GRP (Glass Reinforced Polyester) designed to serve the demanding needs of offshore marine and land-based industrial applications.
The Global Series LED Beacons flameproof “Ex d” versions come standard with two (2) M20 entries. The increased safety “Ex de” versions include a separate terminal chamber for quick field termination or pass-through wiring, and includes three (3) M20 entries in a standard configuration.
These units can be combined with other Global Series products to create factory direct custom configurations, or optional coupling kits are available for limited field fixturing. The Global Series LED Beacon is ideal for use in alarm control panel applications.


Lamp Life 50,000 Hours
Light Source/Lamp Style High-brightness LED Emitter
Operating Temperature Range -67ºF to 158ºF (-55ºC to 70ºC)
Certification Marking II 2GD Ex d IIC Gb,Ex tb IIIC Db IP66. T6 @ 58ºC; T5 @ 70ºC
II 2GD Ex d IIC Gb,Ex tb IIIC Db IP66. T6 @ 58ºC; T5 @ 70ºC
ATEx: Baseefa15ATEX0153X
IECEx: IECEx BAS 15.0102X
UL and cUL Certification Marking Class 1, Division II, Groups A, B, C, D T4 @ 70°C
Class 2, Division II, Groups F, G T6 @ 70°C
Class III T6 @ 70°C
UL and cUL E207119
Guard & External Fasteners 316 stainless steel
Terminals Ex d: 6 way block (3 in, 3 out)
Ex de: 2×3 position quad pole terminal block
Cable Entries Ex d: 2 entries – M20 x 1.5
Ex de: 3 entries – M20 x 1.5
Net Weight Ex d Surface Mount 6.17 lb
Ex d U-Bracket Mount 8.15 lb
Ex de Surface Mount8.99 lb
